Custom 4-Cell 5-Cell 6-Cell Series Battery Packs

Custom Battery Pack Solutions for Your Equipment

FOREWELL provides custom series-connected primary battery packs for electronic equipment requiring a specific output voltage, cell arrangement, connector or installation structure.

Available reference configurations include 4-cell, 5-cell and 6-cell battery packs. When 1.5V cells are connected in series, these configurations provide nominal outputs of 6.0V, 7.5V and 9.0V respectively.

Each battery pack can be customized according to the customer’s equipment specifications, installation space, electrical requirements and order quantity.

Reference Configurations

Configuration	Cell Connection	Reference Nominal Output

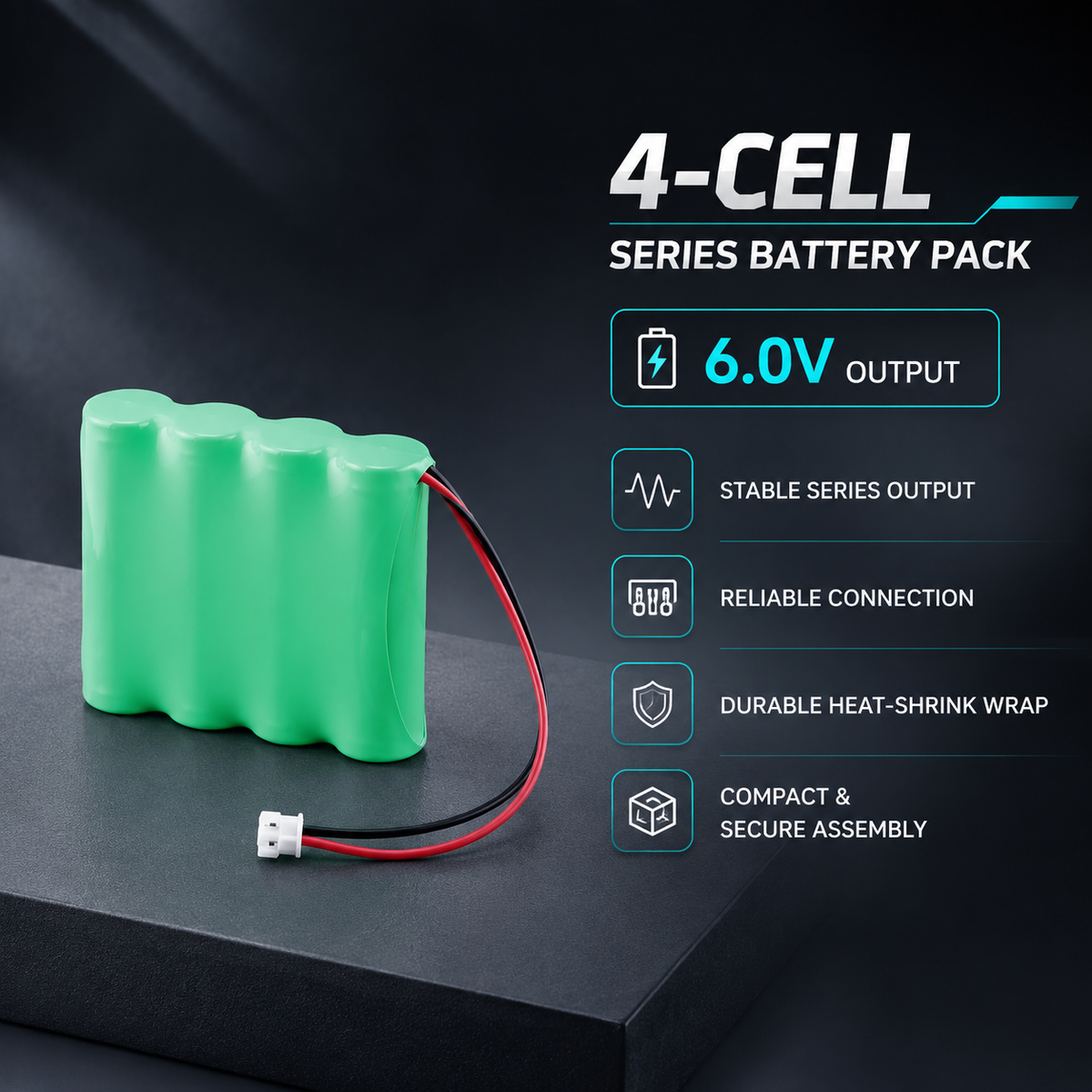

4-Cell Battery Pack	Four 1.5V cells connected in series	6.0V

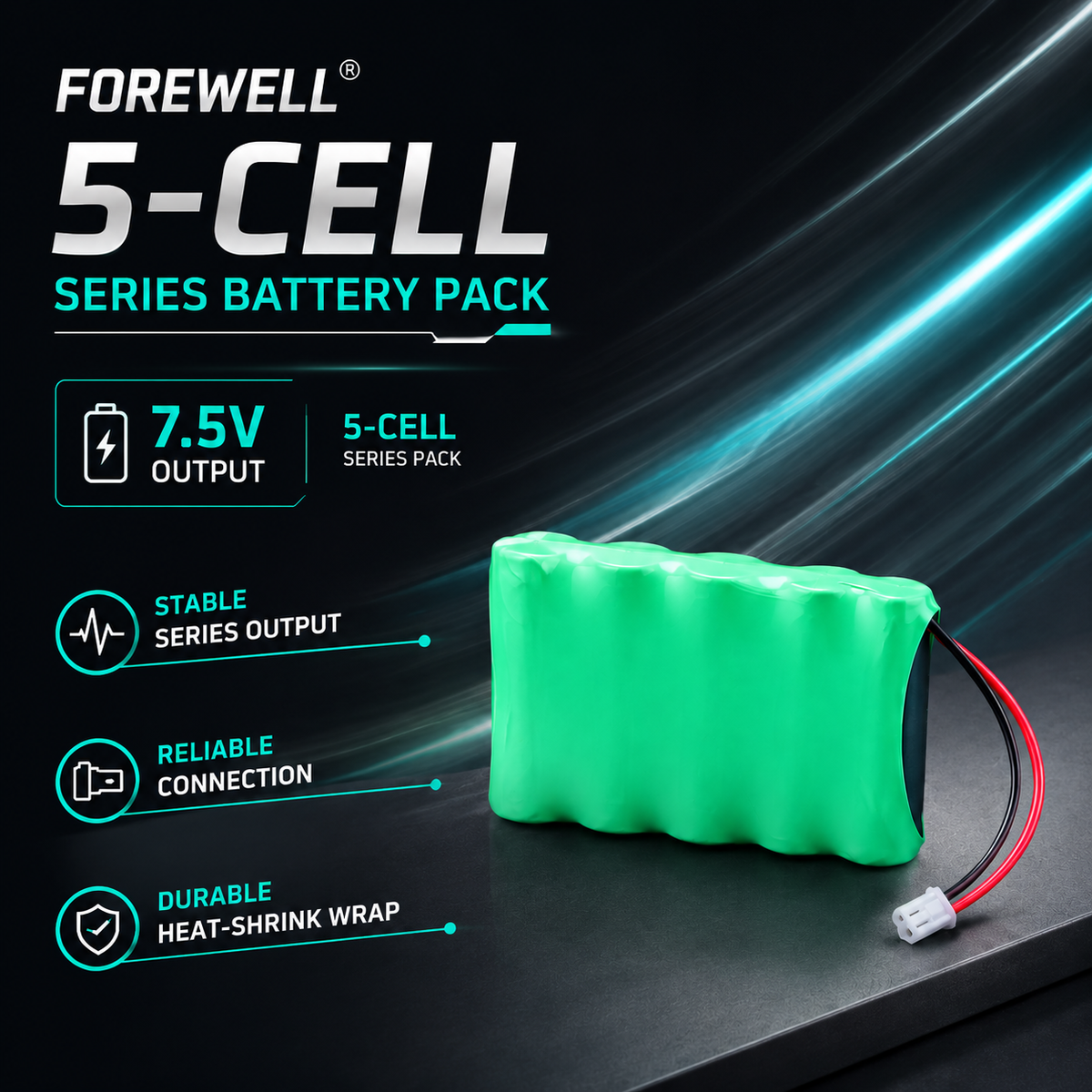

5-Cell Battery Pack	Five 1.5V cells connected in series	7.5V

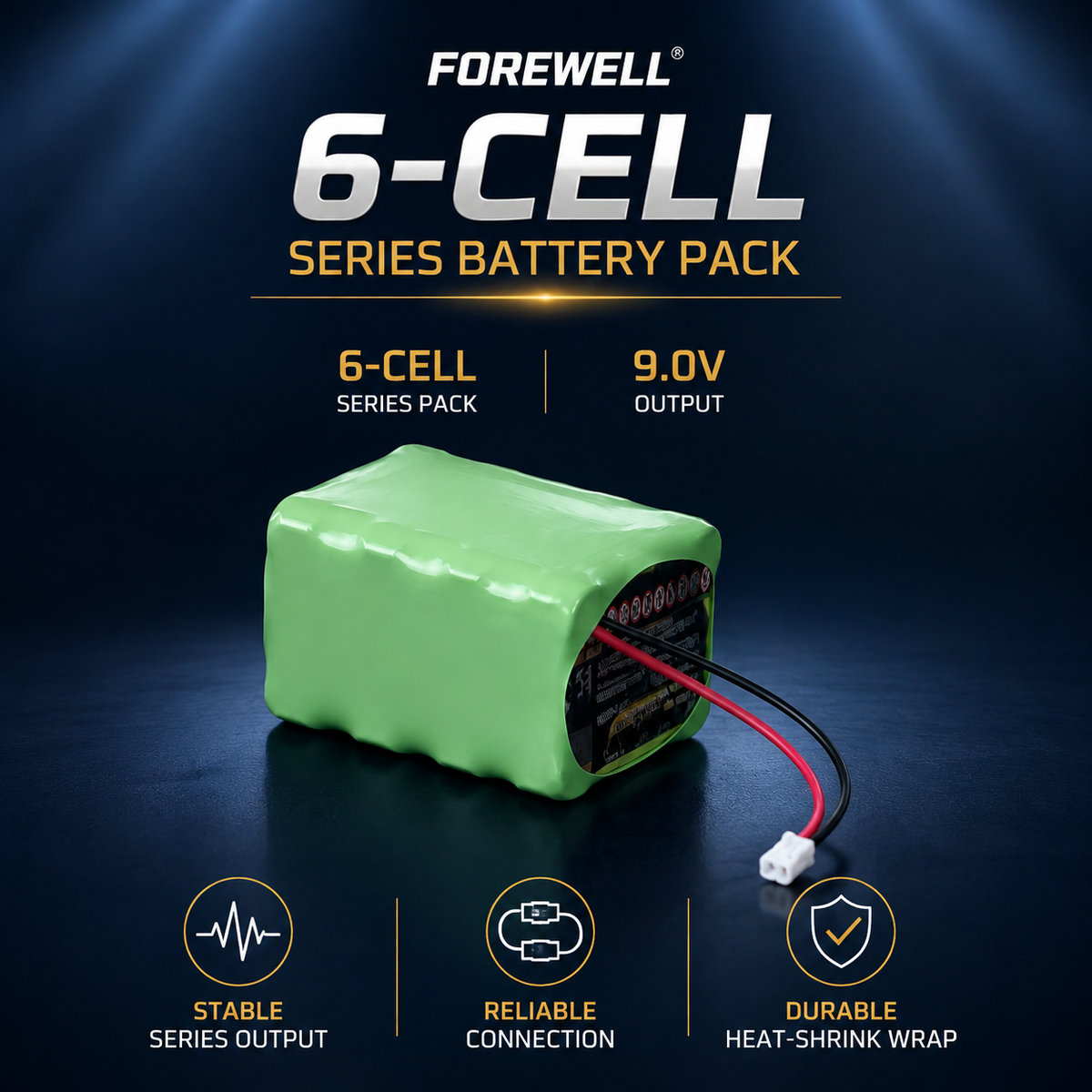

6-Cell Battery Pack	Six 1.5V cells connected in series	9.0V

The output values above are based on 1.5V primary cells connected in series. Actual specifications depend on the selected cell type and project requirements.

Customization Options

Battery packs can be customized according to the requirements of your equipment.

Available customization options may include:

• Battery chemistry

• Battery model and size

• Number of cells

• Series-connected configuration

• Required nominal output voltage

• Cell arrangement and pack dimensions

• Wire type and wire length

• Connector type and polarity

• Heat-shrink sleeve color

• Battery surface branding

• Product label and warning information

• Inner packaging and export carton

All electrical and structural specifications should be confirmed before sample production.

Product Features

• Customized voltage output based on cell configuration

• Compact series-connected battery pack structure

• Reliable welded electrical connections

• Insulated wire leads

• Connector options based on equipment requirements

• Protective heat-shrink sleeve

• Multiple cell arrangements available

• Sample confirmation before mass production

• Suitable for OEM and equipment-manufacturer projects

Typical Applications

Custom series-connected battery packs may be used in compatible equipment such as:

• Electronic measuring equipment

• Security and alarm devices

• Electronic toys

• Remote-control equipment

• Industrial control devices

• Portable electronic equipment

• LED and emergency lighting products

• Educational electronic equipment

• Monitoring devices

• Specialized customer-designed equipment

The final application suitability must be evaluated according to the equipment’s voltage, current, installation space and operating conditions.

Battery Chemistry and Cell Selection

Available cell selection depends on the required voltage, operating current, runtime, dimensions and target cost.

FOREWELL can recommend a suitable battery solution based on the customer’s equipment specifications. Alkaline cells are generally suitable when improved runtime and discharge performance are required, while carbon zinc cells may be considered for cost-sensitive, low-drain applications.

The battery pack shown on this page is a configuration reference. Final cell type, capacity and performance specifications must be confirmed for each project.

Connector and Wire Customization

Different wire and connector configurations may be available according to customer requirements, including:

• Two-wire positive and negative output

• Customized wire length

• Customized wire color

• Different connector housings

• Connector polarity confirmation

• Stripped or terminated wire ends

• Customer-specified connector samples

Customers should provide a connector model, technical drawing, clear photograph or physical sample whenever possible.

Custom Development Process

1. Confirm the equipment requirements.

2. Select the appropriate battery model and number of cells.

3. Confirm voltage, dimensions, wiring and connector specifications.

4. Produce and evaluate a pre-production sample.

5. Confirm the sample and packaging requirements.

6. Begin mass production after final approval.

Information Required for a Quotation

To prepare an accurate quotation, please provide:

• Required nominal output voltage

• Preferred battery chemistry

• Battery model or size

• Number of cells

• Expected battery pack dimensions

• Required wire length

• Connector model and polarity

• Expected order quantity

• Destination market

• Packaging requirements

• Equipment application

If you have an existing battery pack, you may also send clear photographs, product labels, technical drawings or a physical sample for evaluation.

Safety Information

• These battery packs use non-rechargeable primary cells unless otherwise specified.

• Do not recharge a primary battery pack.

• Do not disassemble, crush, short-circuit, heat or dispose of the battery pack in fire.

• Do not mix different battery chemistries, models, brands or production batches.

• Confirm connector polarity before installation.

• Do not use a battery pack with damaged wiring, insulation or heat-shrink wrapping.

• Keep batteries away from children.

• Dispose of used batteries according to applicable local regulations.

Pricing and Minimum Order Quantity

Pricing depends on the battery model, number of cells, connector, wire length, assembly structure, packaging, order quantity and customization requirements.

Any price displayed on this website should be treated as a preliminary reference only and does not represent the final quotation.

Sample costs, minimum order quantity and production lead time will be confirmed after reviewing the project specifications.

Request a Custom Quote

Looking for a customized series-connected battery pack for your equipment?

Please send us the required voltage, cell configuration, dimensions, wire length, connector details, order quantity and application. Our team will review your requirements and recommend a suitable battery pack solution.
