CR23 Series 3V Lithium Coin Cell Batteries

Reliable 3V Lithium Coin Cells for Electronic Equipment

FOREWELL CR23 Series Lithium Coin Cell Batteries provide stable 3V power in a 23mm-diameter coin cell design.

Available models include CR2320, CR2325, CR2330, CR2335 and CR2354. These models share the same approximate diameter but have different thicknesses and capacity levels, providing flexible options for electronic devices with different operating-time and installation-space requirements.

FOREWELL supports wholesale supply, industrial tray packaging, customized blister cards, private-label production and flexible packaging solutions for international customers.

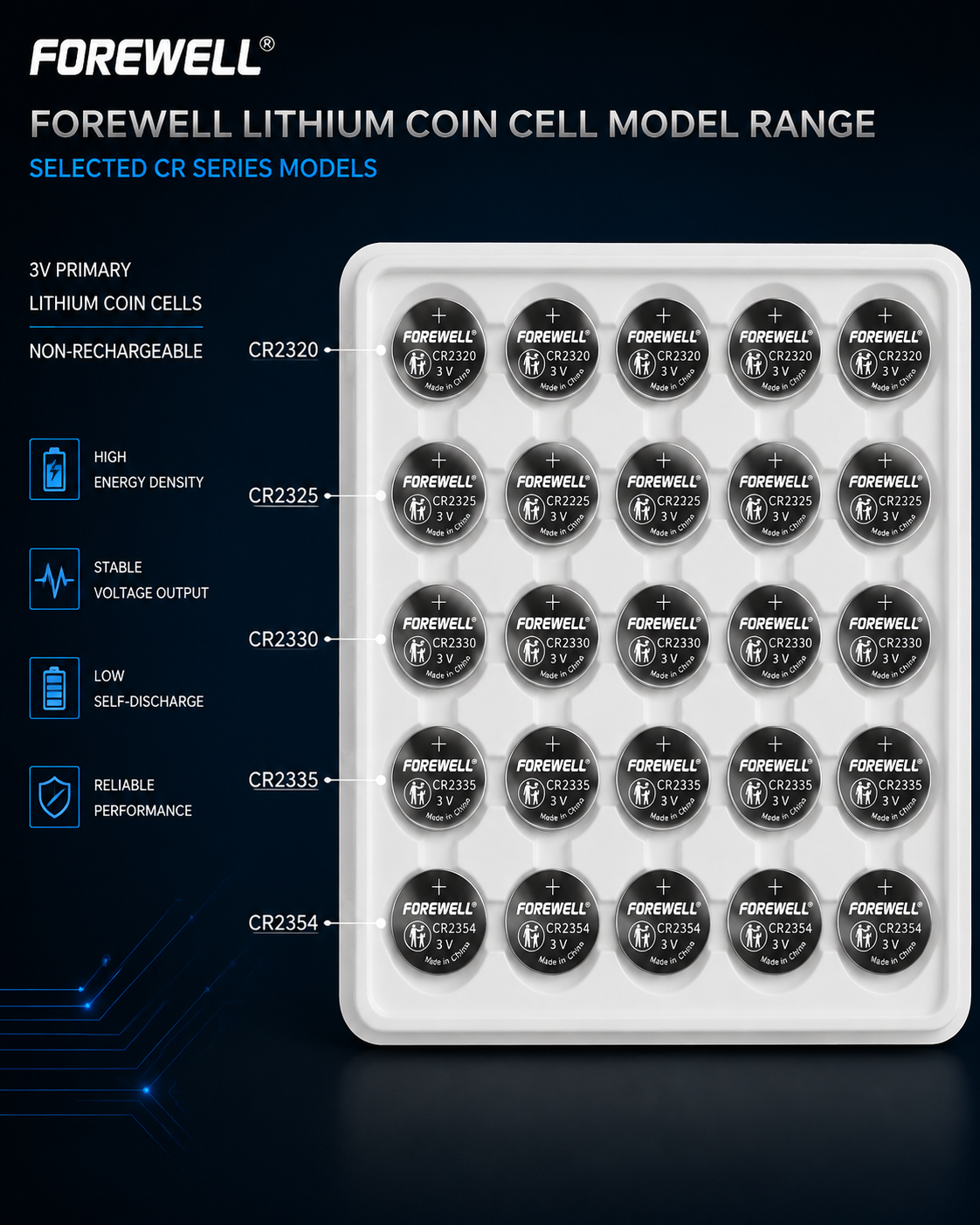

Available Models

Model	Nominal Voltage	Diameter	Thickness

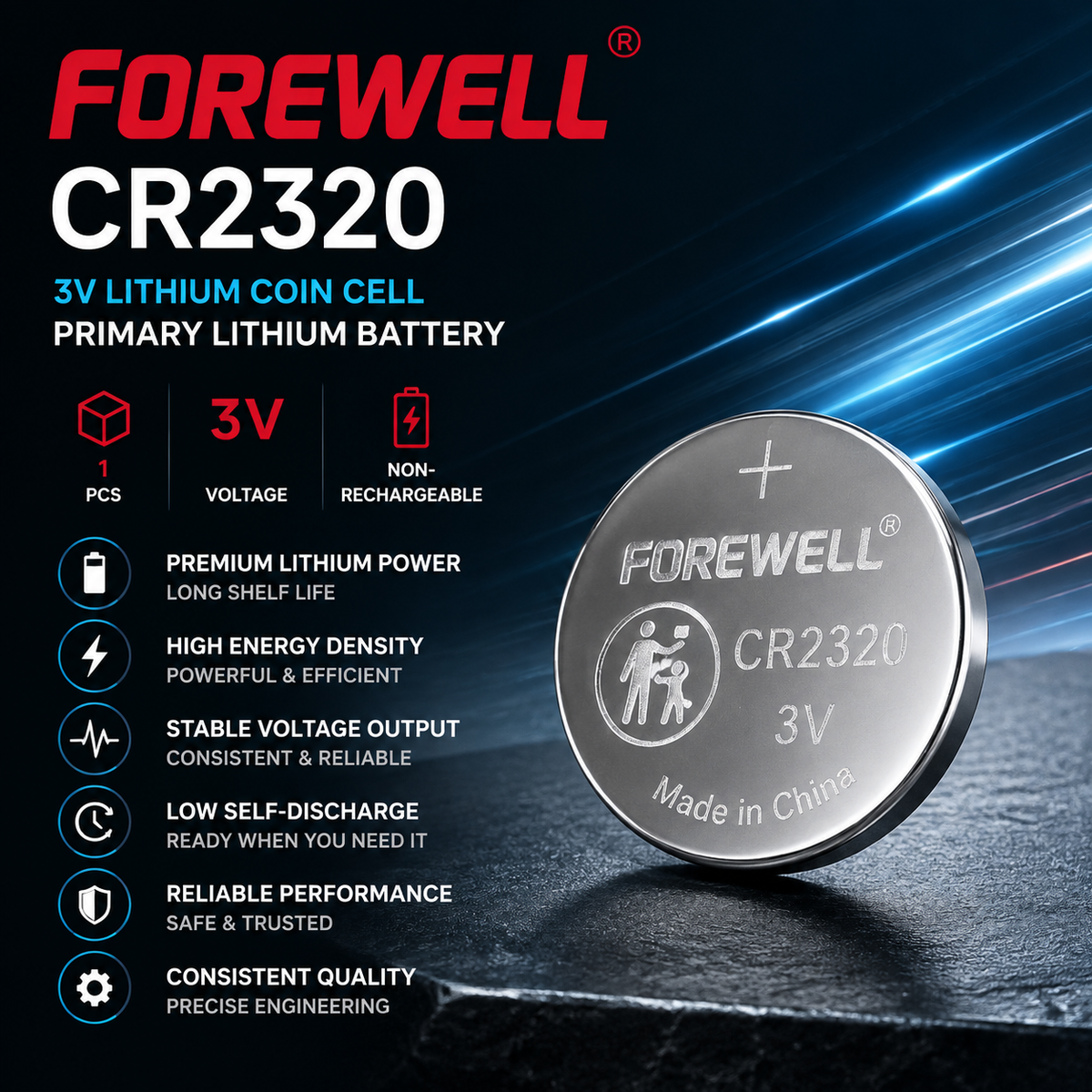

CR2320	3V	23mm	2.0mm

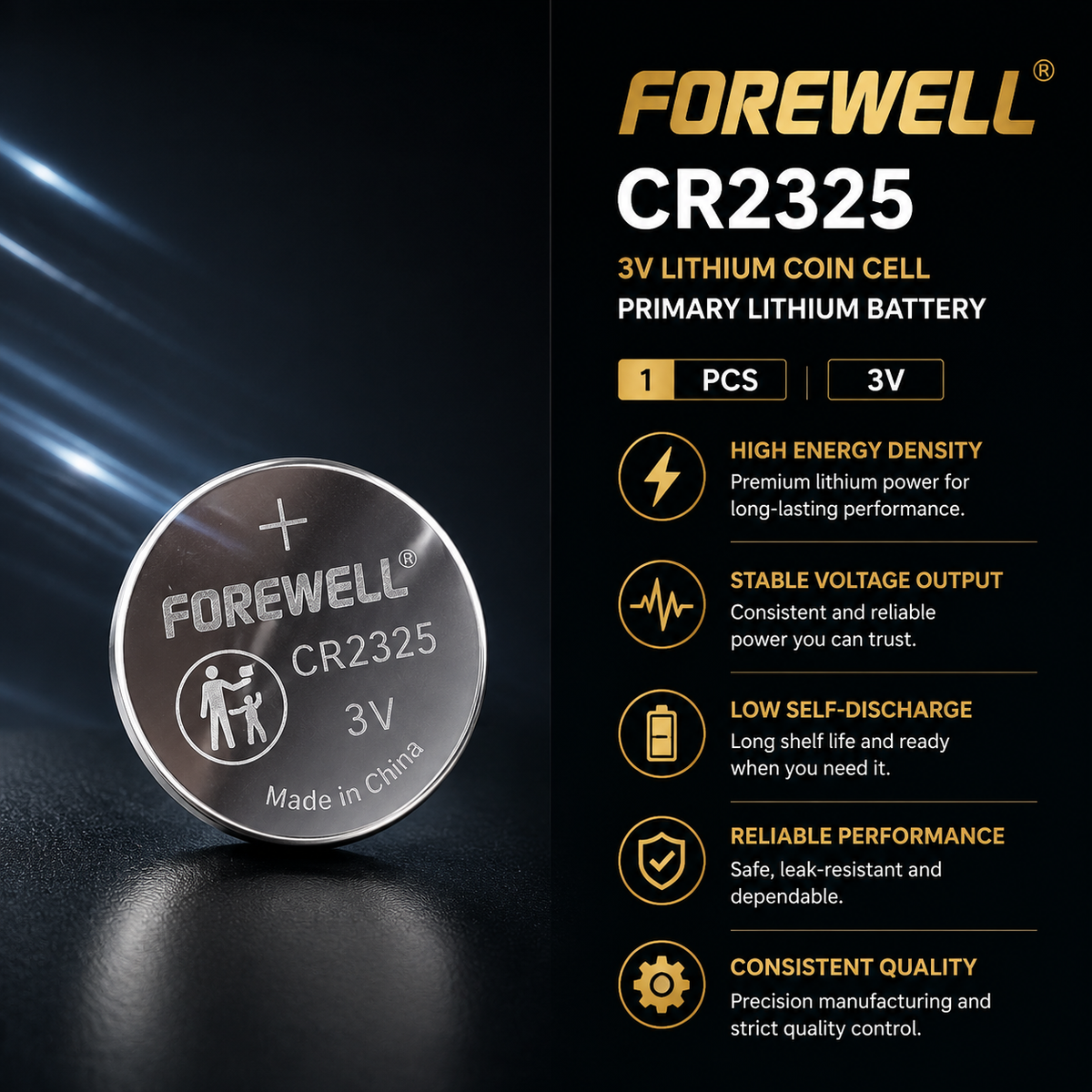

CR2325	3V	23mm	2.5mm

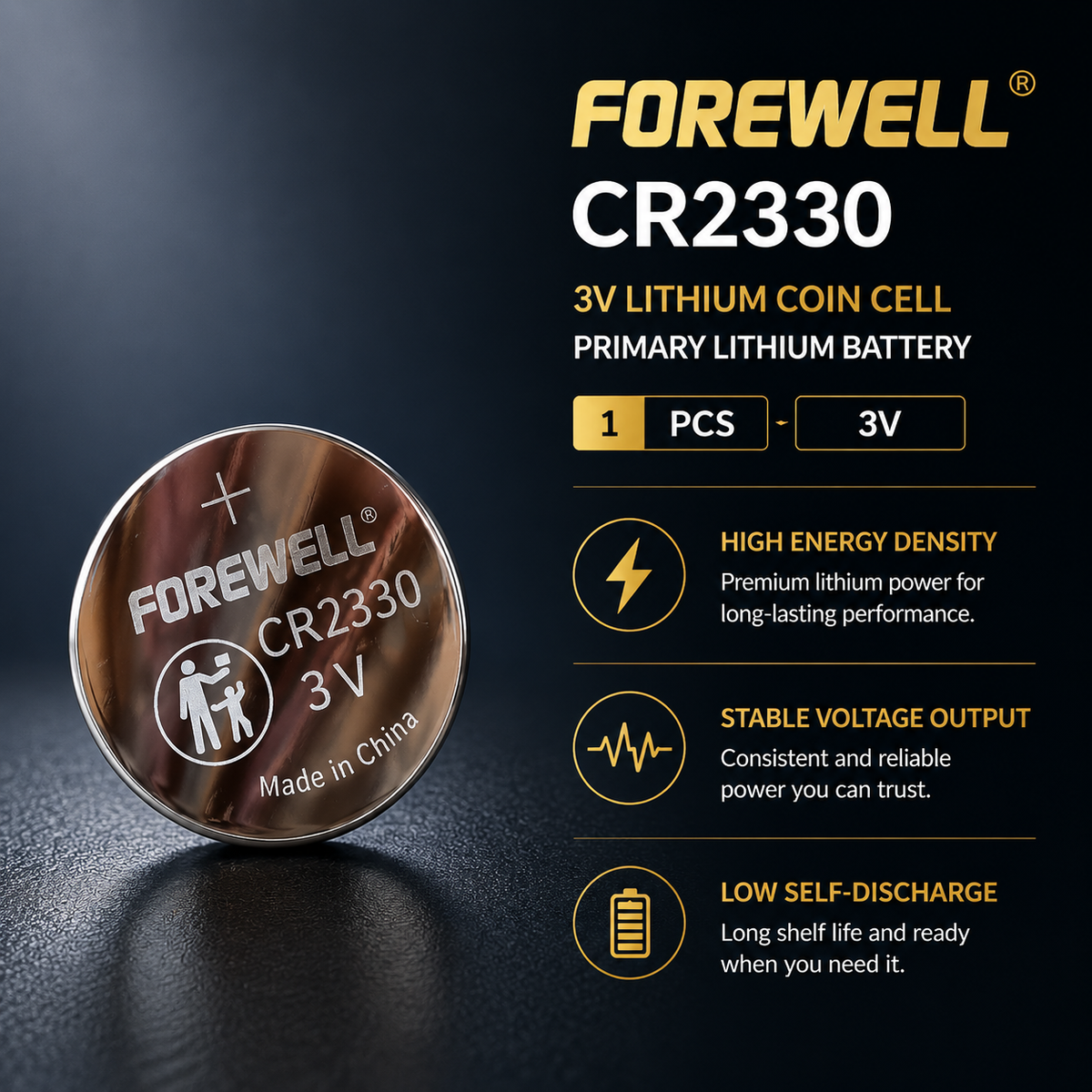

CR2330	3V	23mm	3.0mm

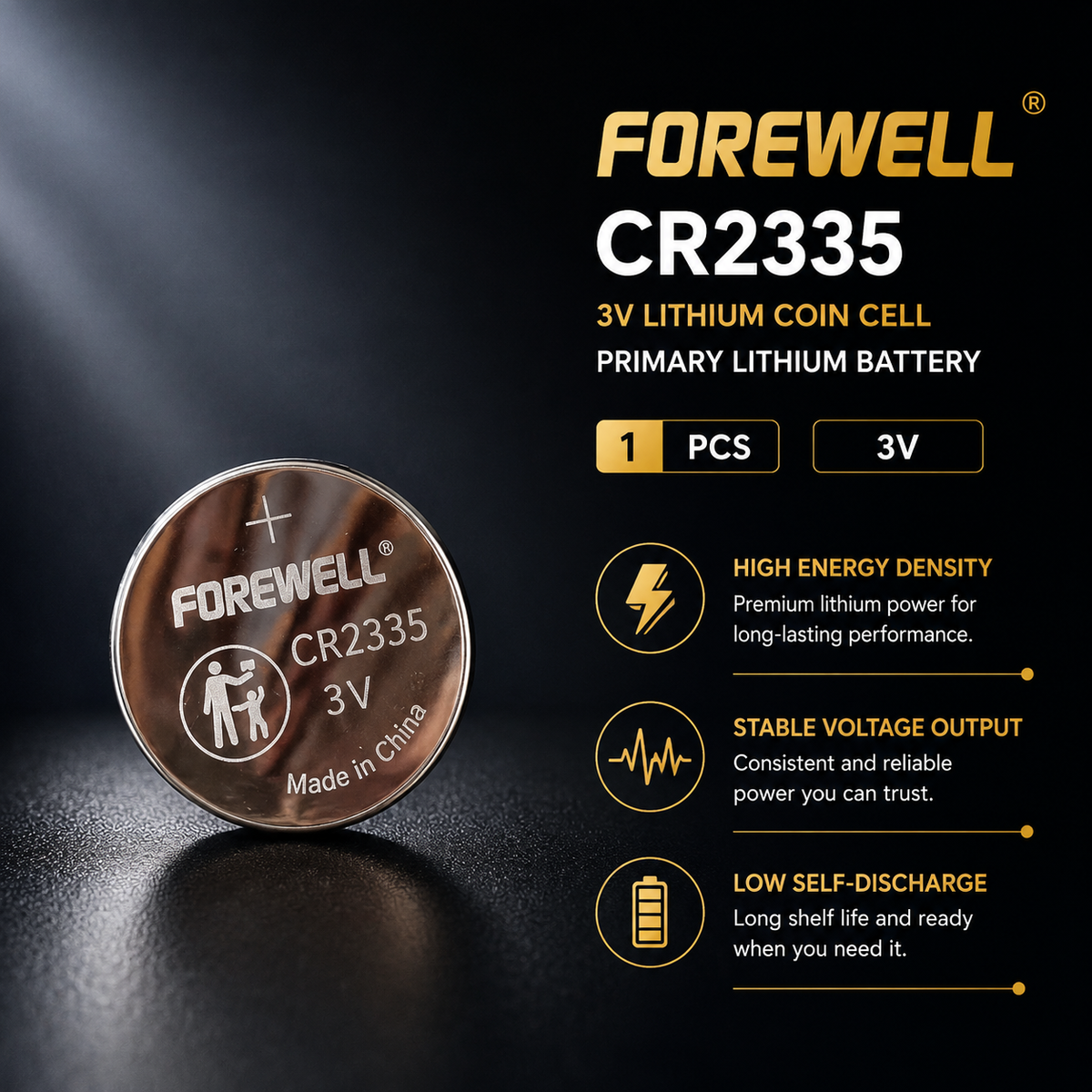

CR2335	3V	23mm	3.5mm

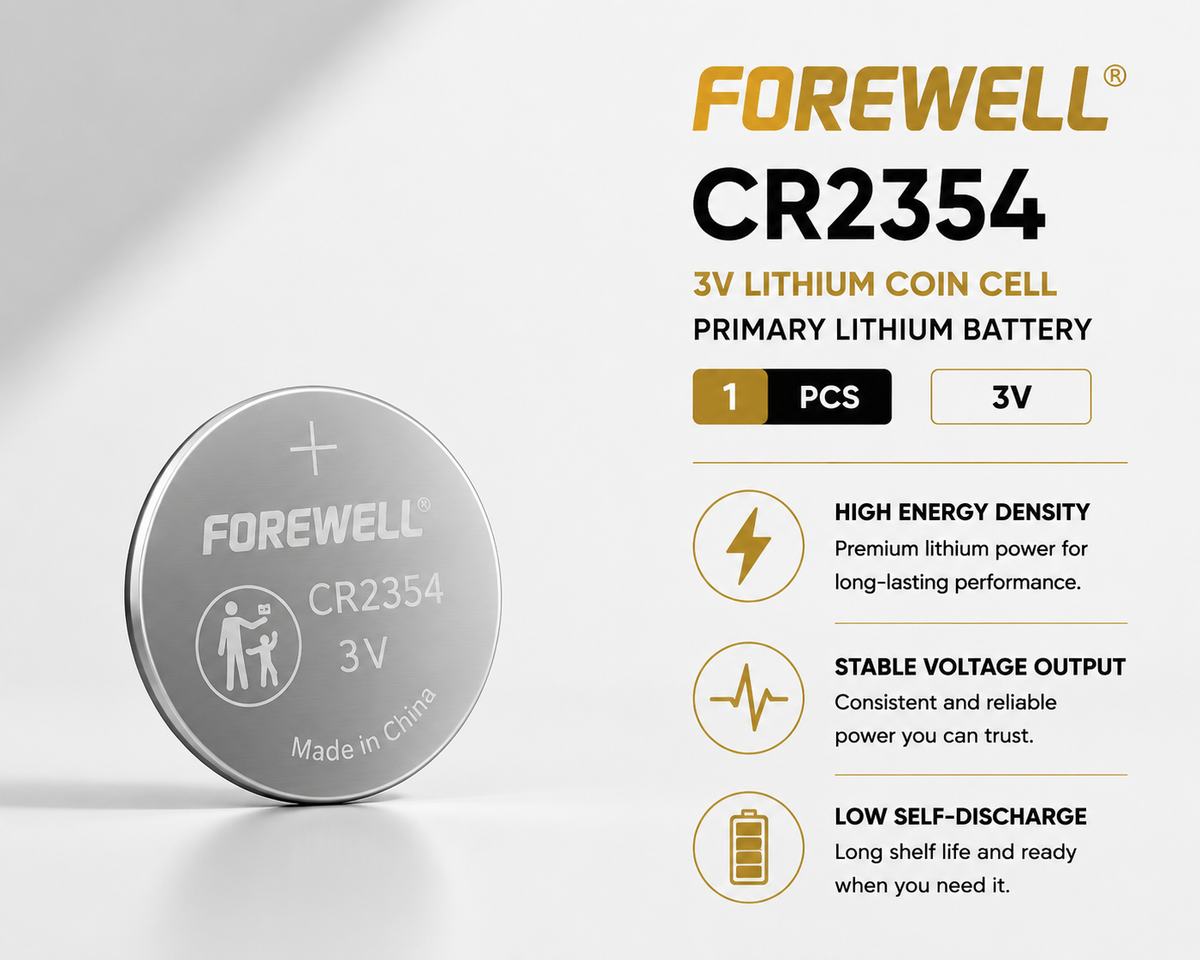

CR2354	3V	23mm	5.4mm

The first two digits in the model number indicate the approximate battery diameter, while the final two digits indicate the approximate thickness.

For example, CR2330 has an approximate diameter of 23mm and a thickness of 3.0mm.

Product Features

• Stable nominal voltage of 3V

• 23mm-diameter coin cell design

• Multiple thickness and capacity options

• High energy density

• Low self-discharge

• Reliable performance for compatible electronic devices

• Suitable for industrial, commercial and retail applications

• Available with FOREWELL branding, neutral labels or private labels

• Flexible retail and bulk packaging options

Typical Applications

CR23 Series lithium coin cells are commonly used in compatible electronic equipment, including:

• Electronic meters

• Memory backup systems

• Security devices

• Industrial control equipment

• Remote controls

• Electronic labels

• Tracking and monitoring devices

• LED products

• Measuring instruments

• Electronic toys

• Medical and healthcare devices

• Other compact electronic equipment

Always confirm the original battery model, dimensions, voltage and equipment requirements before replacement.

Model Selection

Although CR2320, CR2325, CR2330, CR2335 and CR2354 batteries have the same approximate diameter, their thickness and capacity are different.

Thicker models generally provide higher capacity and potentially longer operating time. However, they cannot be used unless the battery compartment supports the corresponding thickness.

Do not replace one model with another based only on diameter. Always use the model specified by the equipment manufacturer.

Available Packaging Options

Available packaging options may include:

• Industrial tray packaging

• Individual blister card

• Multi-piece blister card

• Retail card packaging

• Plain or color-printed inner box

• Customized retail packaging

• Export carton packaging

Packaging availability depends on the selected model, order quantity, destination market and customization requirements.

OEM & Private-Label Services

FOREWELL provides flexible OEM and private-label lithium coin cell solutions for importers, distributors, wholesalers and retail brands.

Available customization services include:

• Custom battery surface printing

• Private-brand and neutral-brand production

• Customized blister card design

• Customized paper card and retail packaging

• Barcode and multilingual warning information

• Child-safety packaging options subject to market requirements

• Inner-box and export-carton customization

• Carton marking and shipping label customization

Please provide your target market, required model, expected quantity, packaging preference and artwork requirements so that we can recommend a suitable solution.

Safety Information

• This is a non-rechargeable primary lithium battery.

• Do not recharge, disassemble, short-circuit, heat or dispose of in fire.

• Do not mix different battery models, brands, conditions or production batches.

• Install the battery with the correct polarity.

• Keep new and used coin cell batteries out of the reach of children.

• Swallowing a coin cell battery can cause serious internal injury. Seek immediate medical attention if ingestion is suspected.

• Dispose of used batteries according to local regulations.

Pricing and Minimum Order Quantity

Pricing depends on the selected model, order quantity, packaging format, printing requirements, customization level and delivery terms.

Any price displayed on this website should be treated as a preliminary reference only and does not represent the final quotation.

Contact FOREWELL for current pricing, minimum order quantity, production lead time, sample availability and model-specific technical information.

Request a Quote

Looking for CR23 Series lithium coin cell batteries for wholesale distribution or private-label production?

Please send us the required battery model, quantity, destination market, preferred packaging and customization requirements. Our team will prepare a suitable quotation for your project.
